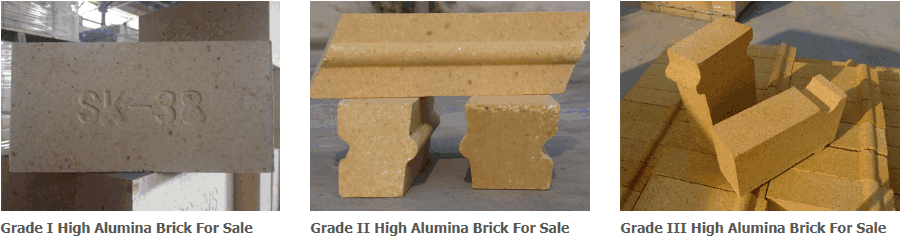

Product Introduction
High alumina brick is a kind of alumina-silicate refractory material with content of alumina oxide more than 48%. It is calcined and formed by the raw material of banxite or the material with high content of AL2O3. High thermal stability, the refractoriness is more than 1770℃.
High alumina brick is mainly used in areas such as kiln linings and walls that require load-bearing and high-temperature resistance, such as in industries such as steel smelting and cement production.
Technical Data
| High Alumina Refractory Brick Physical and Chemical Index | ||||||
| Item | Properties | |||||
| RS-80 | RS-75 | RS-65 | RS-55 | RS-48 | ||
| Al2O3 (%) | 80 | ≥75 | ≥65 | ≥55 | ≥48 | |
| Refractoriness (°C ) | ≥1790 | ≥1790 | ≥1790 | ≥1770 | ≥1750 | |
| Bulk density (g/cm3) | 2.65 | 2.5 | 2.45 | 2.4 | 2.3 | |
| Softening temperature under load (°C ) | 1530 | ≥1520 | ≥1500 | ≥1470 | ≥1420 | |
| Reheating Linear changes Rate (%) | 1500°CX2H | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| 1450°CX2H | -0.4 | -0.4 | -0.4 | -0.4 | -0.4 | |
| Apparent porosity (%) | 22 | ≤23 | ≤23 | ≤22 | ≤22 | |
| Cold crushing strength (Mpa) | 55 | ≥50 | ≥45 | ≥40 | ≥35 | |
| Application | steel furnace, glass furnace, sodium silicate furnace, ceramic shuttle kiln, cement rotary kiln, blast furnace, electric furnace, blast furnace and reverberatory furnace. | |||||
Application

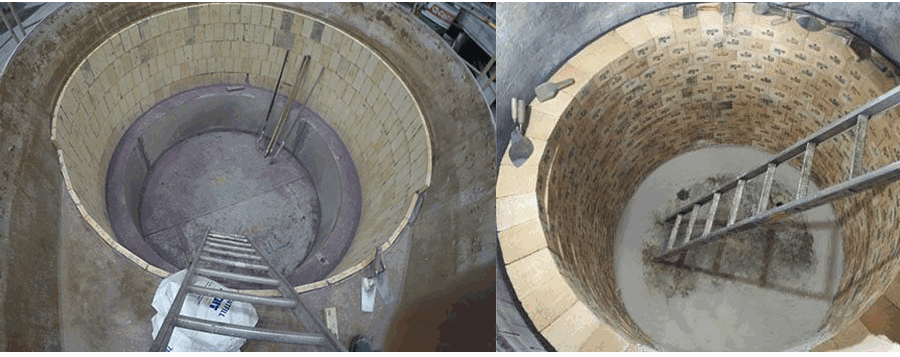

High alumina bricks are widely used for blast furnaces, hot blast stove,steel ladle lining, reheating furnace, cement kiln, tunnel kiln,boiler, coke oven, carbon furnace, glass kiln , steel smelting furnace and various kiln lining and thermotechnical equipment, etc.
